Podávací systém zálisků
Complete feeding system for steel insert Socket 746.275-00
Standard linear feeder lenght. Left orientation.
- Double end unit / Distance 300mm. 2 inserts lifted (around 50mm) on a double pin (distance 300mm).

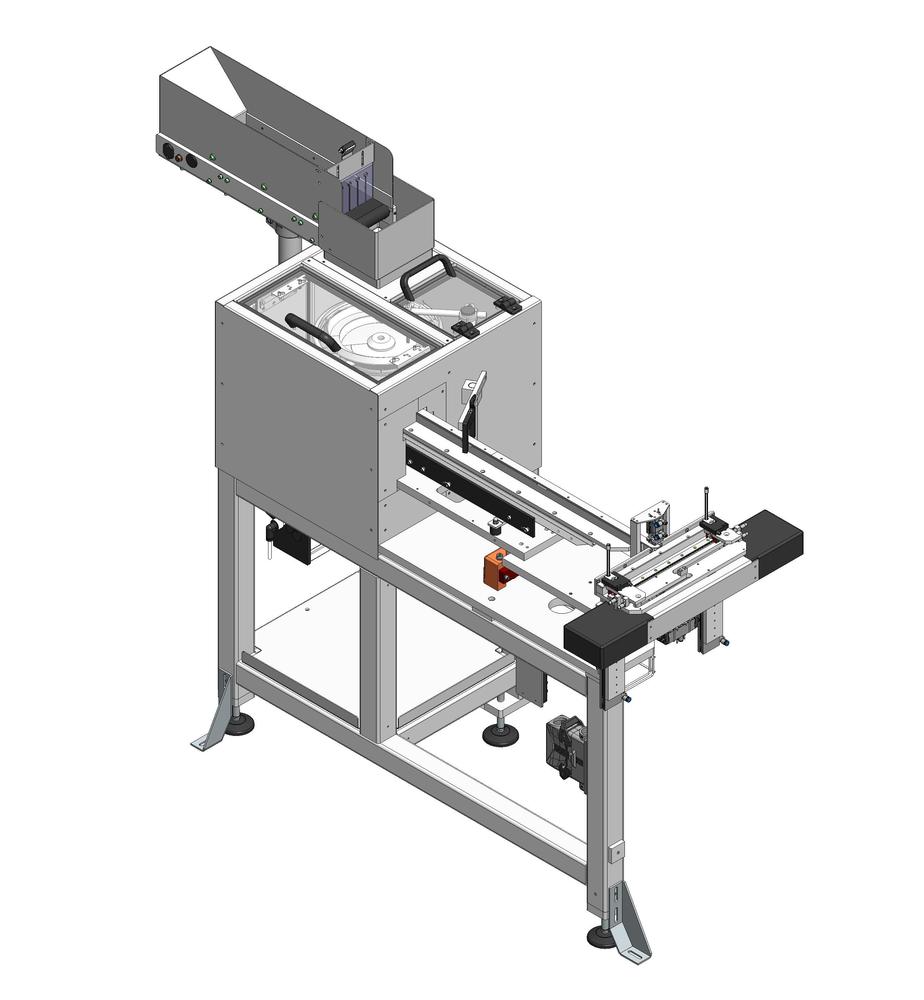

The feeding system consists of following groups:
- Bowl vibratory feeder with RNA SRC-N250 drive.
Output parts in one row. Fully oriented.
Stainless steel sorting bowl with Habasit carpet surface.
Air nozzles maybe used for sorting. Pneumatic equipment.
Noise + dust reduction cover.
- Linear output vibration feeder.
Based on RNA SLL800-800 drive unit.
Stand and the level sensor included.
Stainless steel side guiding elements.
- Bulk horizontal hopper with a capacity of 10 liters (6000 parts).
Including its stand and part level sensor in the bowl feeder.
Empty sensor.

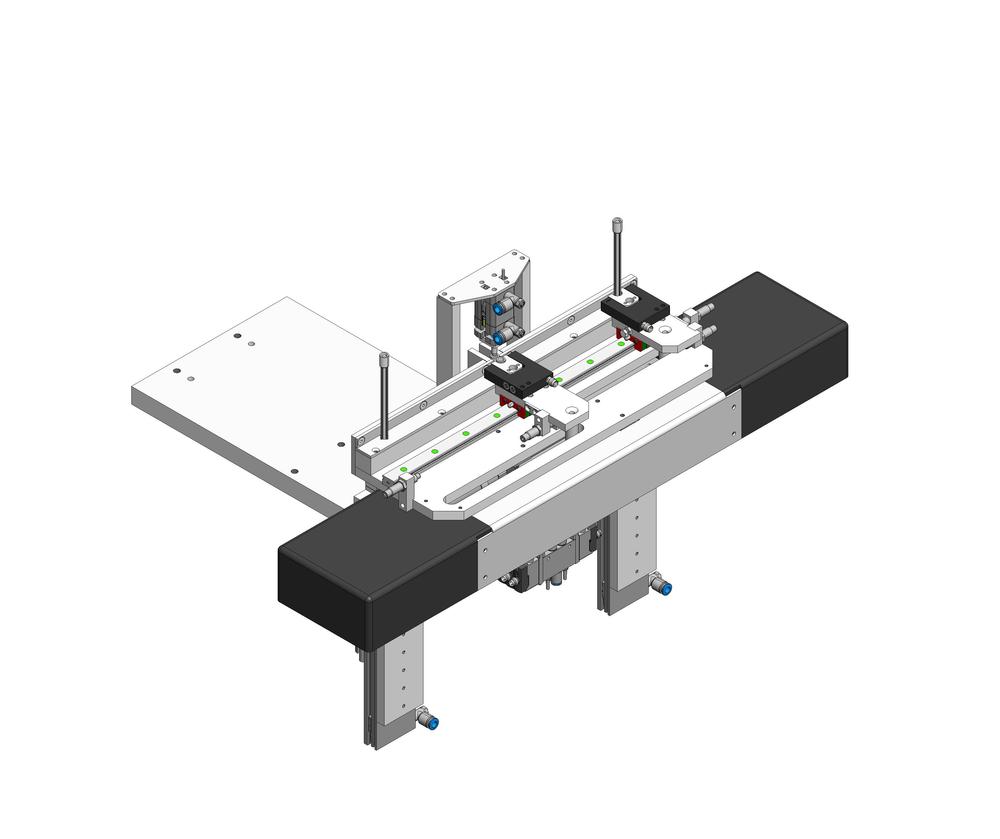

- End unit. This unit separates two parts moving it up by the lifter (distance 300mm). The part presentation is monitored by one single sensor. One pneumatic slider. There must be a free space around the end unit around 300mm to each side.
- Based on a steel plate construction.
- Logical Control system.
Material flow controlled by RNA ESK2002 regulator. End unit is operated by the robot.
Communication with the robot via Harting connector.
- Cooperation in the creation of CAD documentation for suitable installation.
